CW3E Station — Potter Valley North

CW3E id: PVN
CDEC id: PVN
NWS id: NVPC1
Lat/Long: 39.361410 / -123.113120
Elevation: 410m
Team Lead: Lisa Katz
Install Date: Jan. 1, 0001
Permit Expires: --
Watershed: Russian
Telemetry: Cell
Monument: Pole
Land Owners: private
Permit Type: Handshake
Site Type: SurfaceMet+Soil

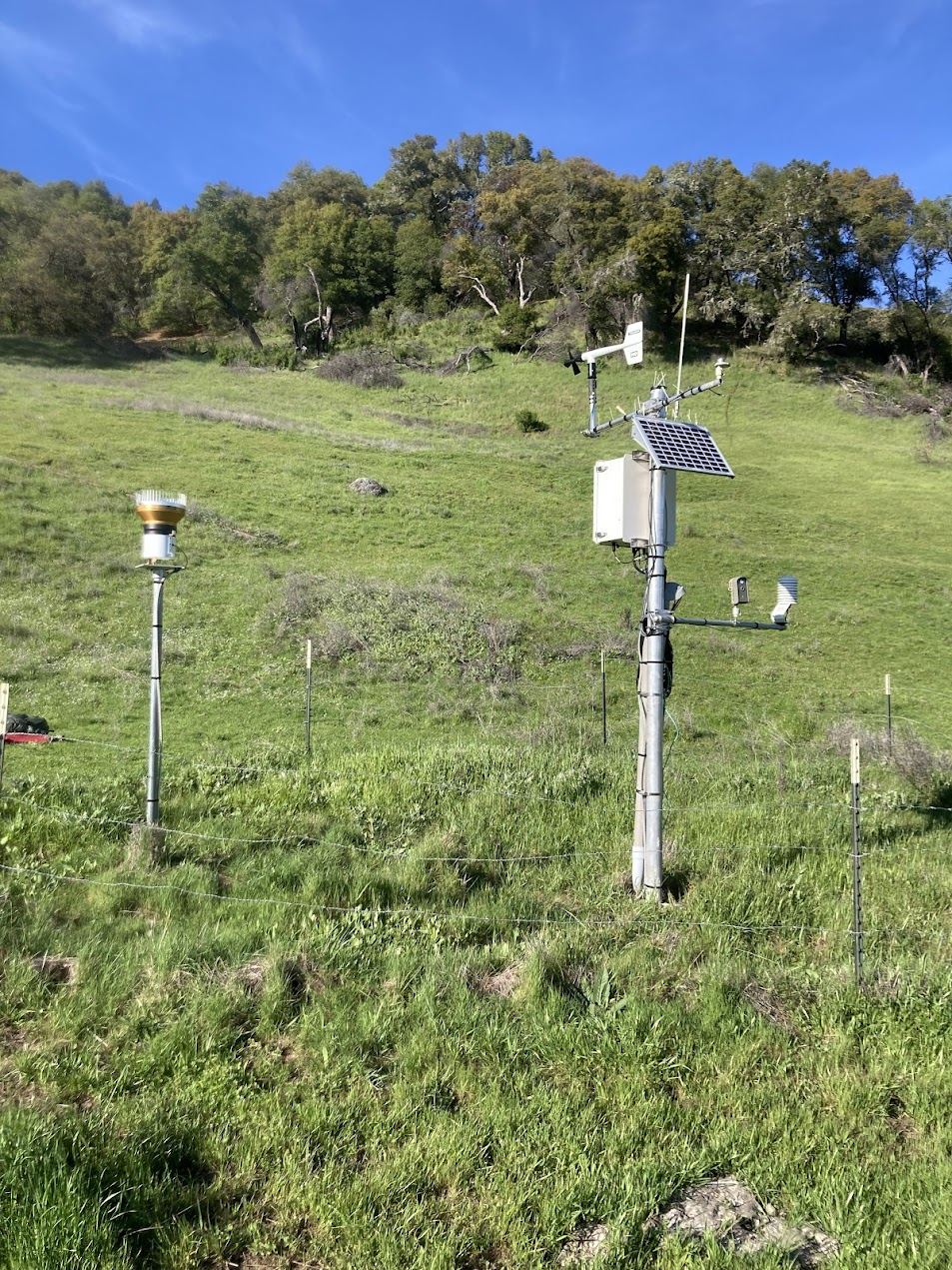

PVN is on a grassy, south facing hillside used for grazing on the north end of Potter Valley. The aspect is ~177 deg and slope is ~4 deg. PVN is within the boundary of the 2018 Mendocino Complex Fire.

Stay in Ukiah and drive to Potter Valley.
Lots of wasp activity, bring Raid wasp killer.
Beware of cows and close all gates to keep the cows in.
Parking next to the site is not advised as a spring on the south side of the site keeps the area very muddy and could get your vehicle stuck.
Bring a ladder since the enclosure is far off the ground.
Make sure you have connections for RS232 because the datalogger is a CR1000.

Tasks

Due	Owner	Created By	Details
--	--	Lisa Katz	Add a campbell scientific flathead screwdriver to the enclosure pocket.
--	--	Lisa Katz	No serial number sticker or calibration sticker on anemometer. Find out when the anemometer was last calibrated and make some stickers for it.
--	--	Lisa Katz	Replace broken CS320 pyranometer with SP2 Lite.
--	--	Lisa Katz	Soil sensors (6) enter into the enclosure through a gland that has one big hole and a lot of monkey poo (see picture of bottom of the enclosure). The monkey poo is old and no longer keeping the wasps out. Install new gland with (6) punch outs for the sensor cables. Alternatively, install new monkey poo that covers the entire void into the enclosure gland.
--	--	Lisa Katz	There were two wasps nests on the underside of the solar panel, there were also active wasps going in and out of a gland at the bottom of the enclosure. Lisa thoroughly sprayed the wasps nests and the bottom of the enclosure with Raid wasp killer. On the next visit, the wasps may or may not have recolonized the nests. Either way, the nests need to be removed and the enclosure sealed up. Suggestion to remove the wasps nests if they were not recolonized, and if so, use more Raid and then remove them. Bring paper towels and water to clean any wasp nest residue inside the enclosure (see picture of wasp nest attempts at the top of the enclosure).
--	--	Lisa Katz	Determine what kind of venting on the enclosure

Sensors

Type	Label	Model	SN	Installed On
Air Temperature/Relative Humidity	--	HygroVue 10	E1833	Jan. 1, 0001
Anemometer	--	R.M. Young 05108 Heavy Duty Wind Monitor	164361	Jan. 1, 0001
Barometer	--	Vaisala PTB 110	N0710338	Jan. 1, 0001
Pyranometer	--	Campbell Scientific CS320	1425	Jan. 1, 0001
Soil Moisture	100cm	CS616	--	Jan. 1, 0001
Soil Moisture	10cm	CS616	--	Jan. 1, 0001
Soil Moisture	15cm	CS616	--	Jan. 1, 0001
Soil Moisture	20cm	CS616	--	Jan. 1, 0001
Soil Moisture	50cm	CS616	--	Jan. 1, 0001
Soil Moisture	5cm	CS616	--	Jan. 1, 0001
Tipping Bucket	--	Texas Electronics TR-525M	--	Jan. 1, 0001

Other Equipment

Type	Label	Model	SN	Installed On
Data Logger	None	CR1000	14132	Jan. 1, 0001
Solar Panel	None	unknown	None	Jan. 1, 0001
Battery	None	NP24-12T 12V 24ah	None	Jan. 1, 0001
Cell Modem	None	Sierra Wireless RV50	LT71550270021028	Jan. 1, 0001

Visits

On	Summary
April 20, 2024	Annual check up

Funding Sources

Start	End	Source
Jan. 1, 0001	--	USACE FIRO
